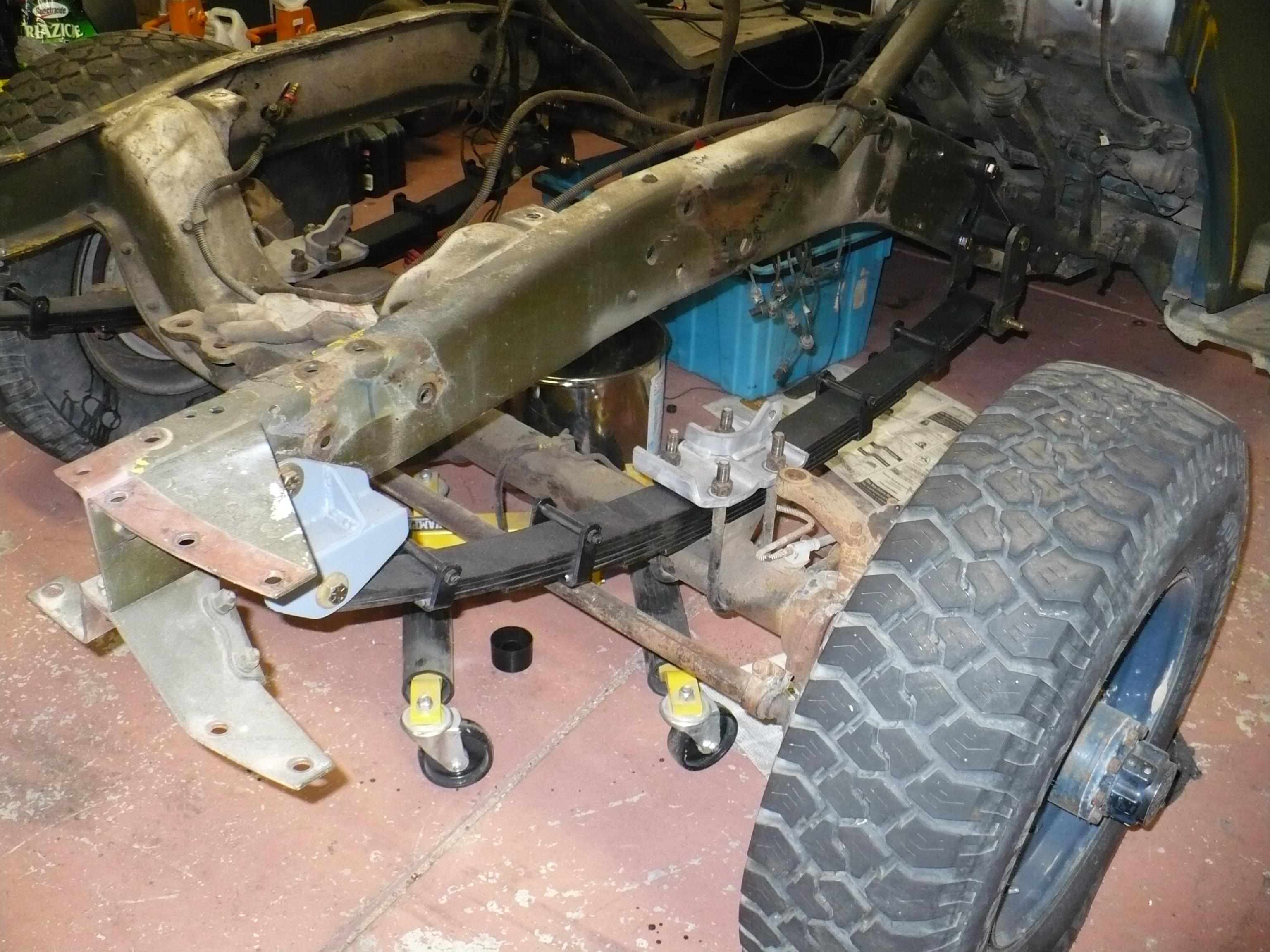

New front leaf spring
I took Rocky Mountain Spring and Suspension my original M37 front spring and told them I need it remade as a 2.5" wide 400lb more capacity and 2" lift. |
|
|
|

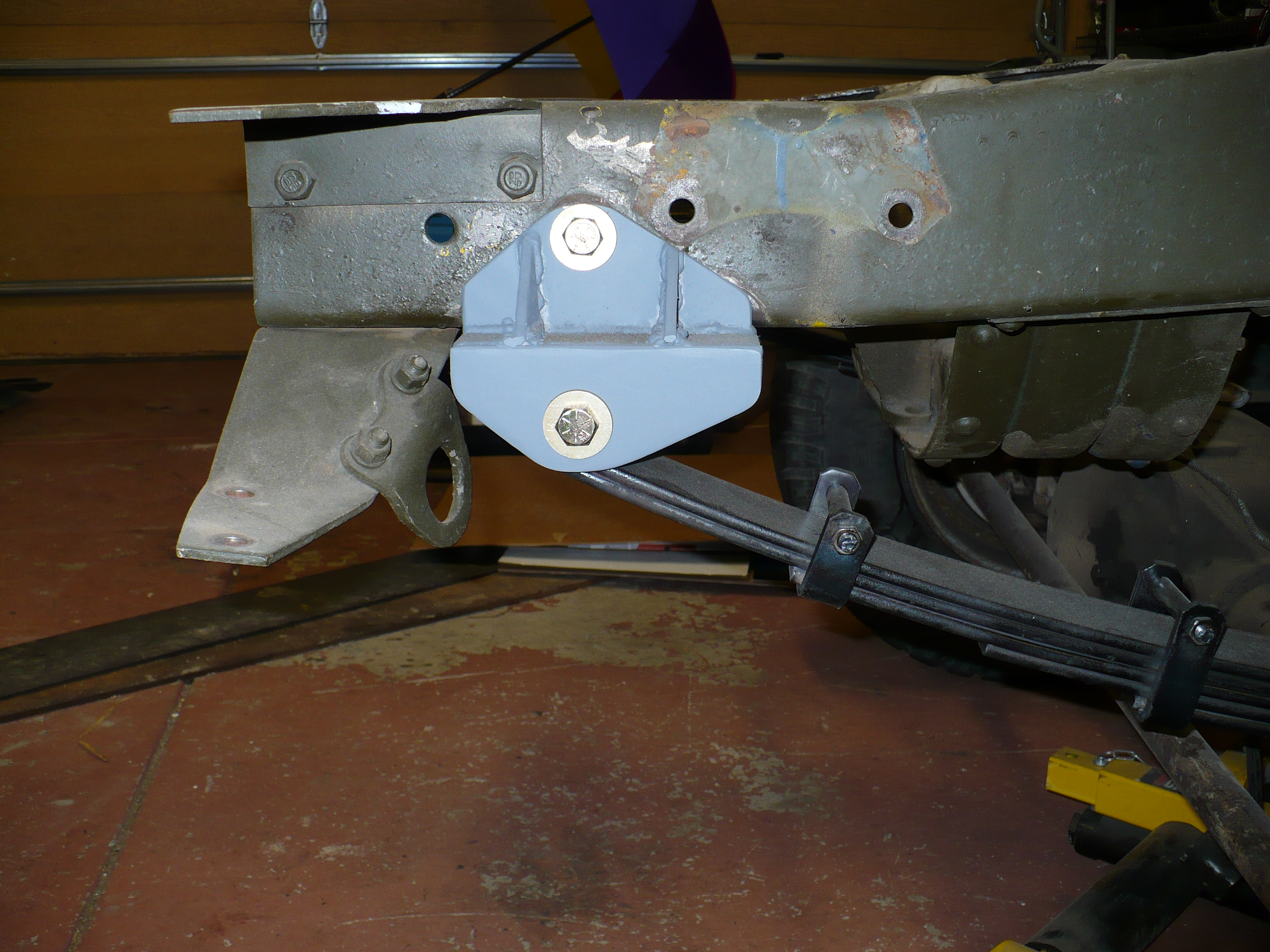

Front leaf spring: front mount
I fabricated this mount out of 3/16" steel. I will have to get my buddy to re weld the supports in. I hate Flux core wire |
|
|
|

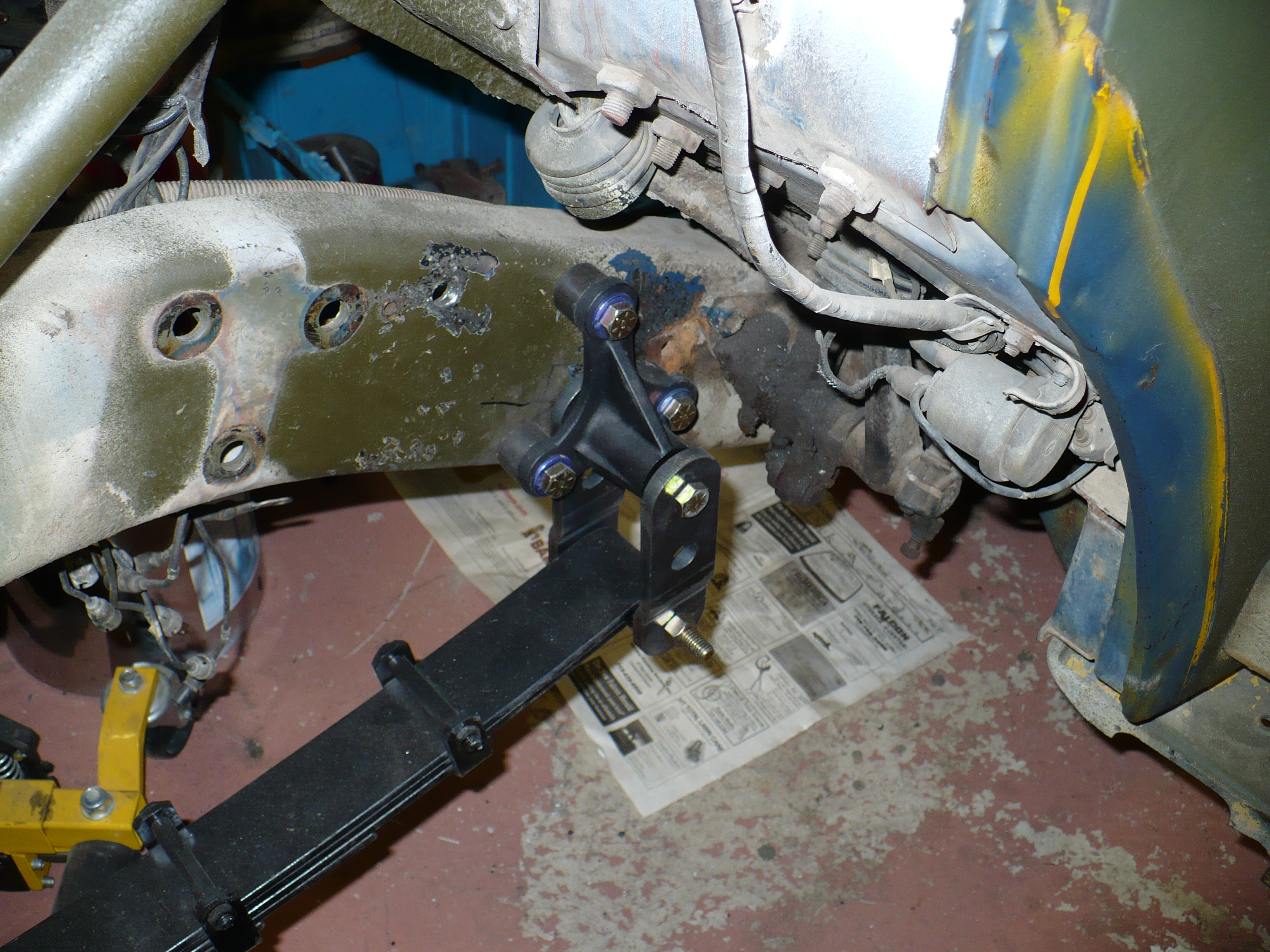

Front Leaf Spring rear mount
Here is the what we cam up with I am using the front leaf spring rear mounts out of a 79 1/2 ton dodge truck. They are mounted outside the frame over the original shackle hole in the frame. It is then spaced out off the frame with 1 1/4" OD 1/2 " ID tube that is cut into 13/16" spacers. I am then using 5" shackles that have a 1/4" offset from RuffStuffSpecialties.com |
|
|
|
|
|
|
|
|
|
|
|

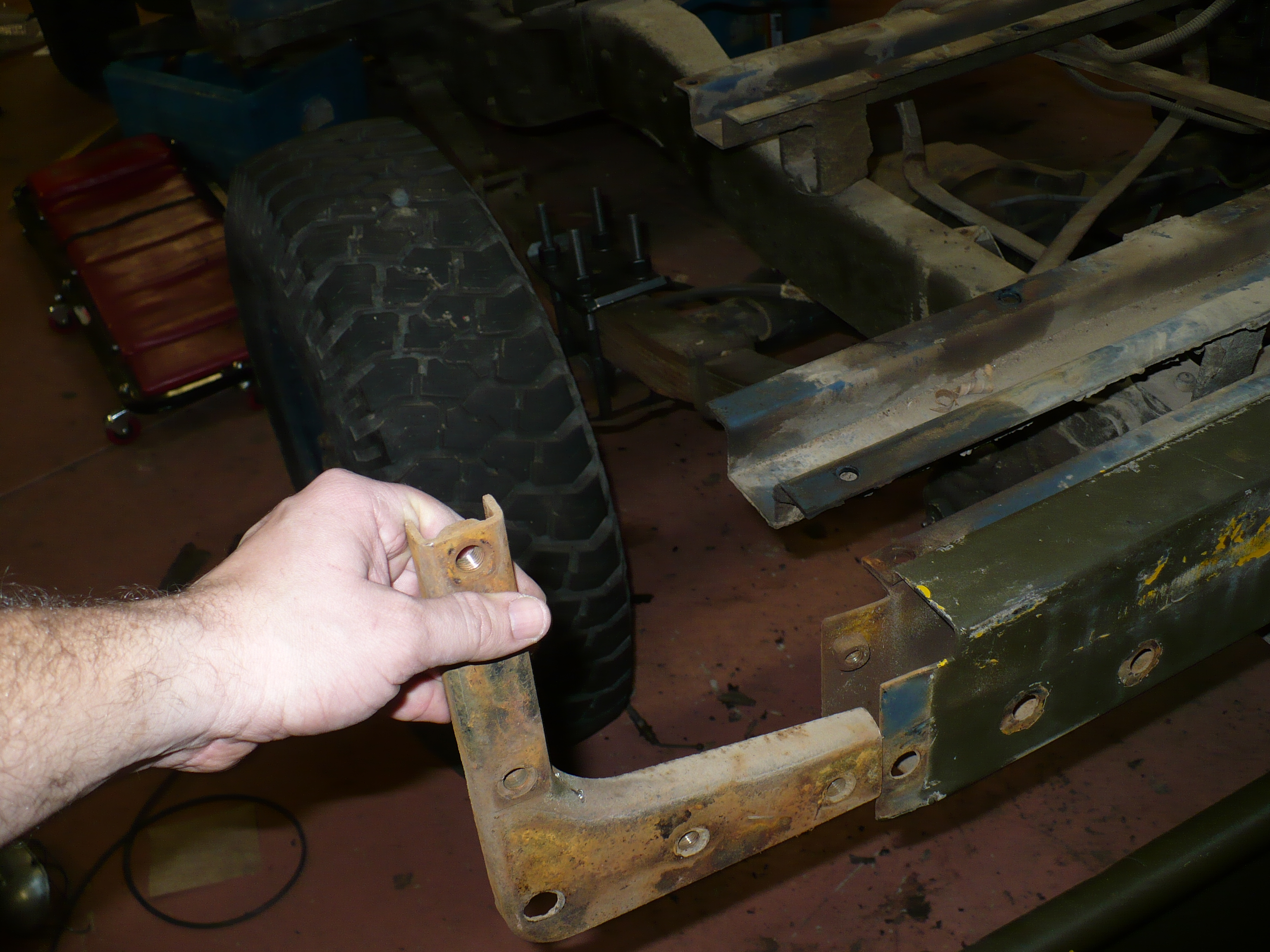

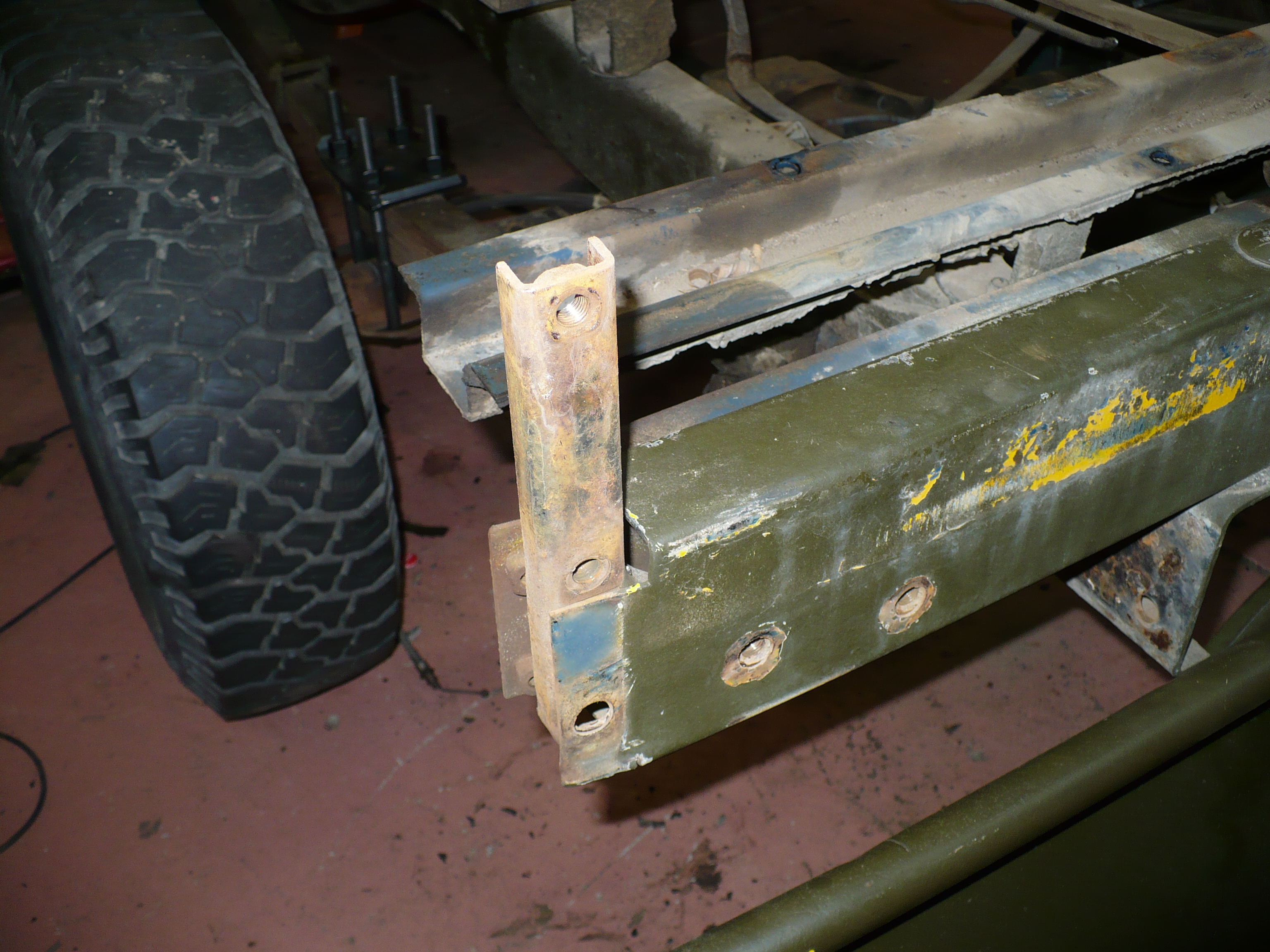

Rear Bedside bracket
|
|
|
|
|
|
Rear Bedside bracket
|
|
|
|

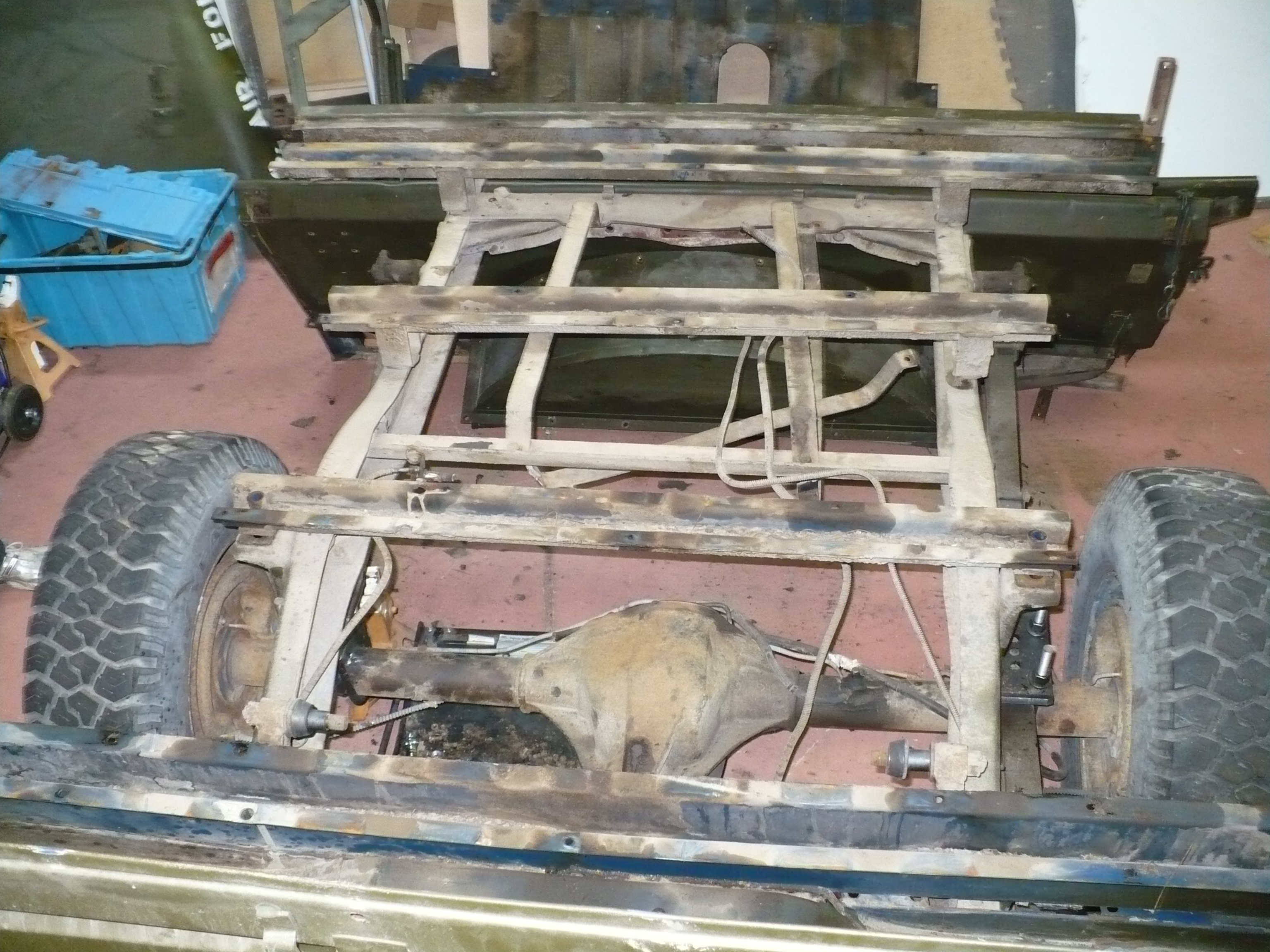

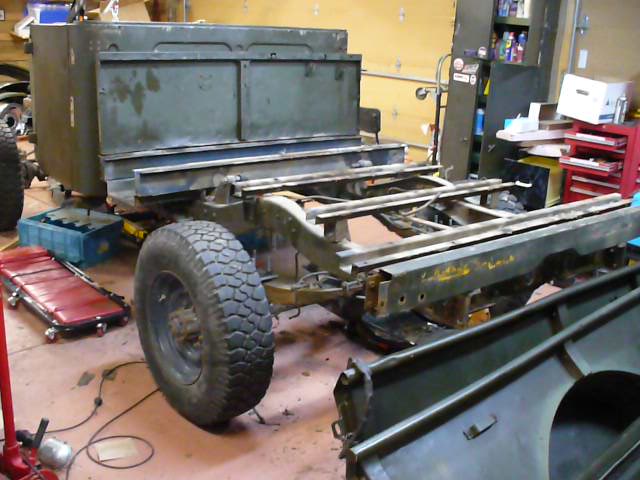

Bed Supports
|
|
|
|
Bed Supports
|
|
|
|

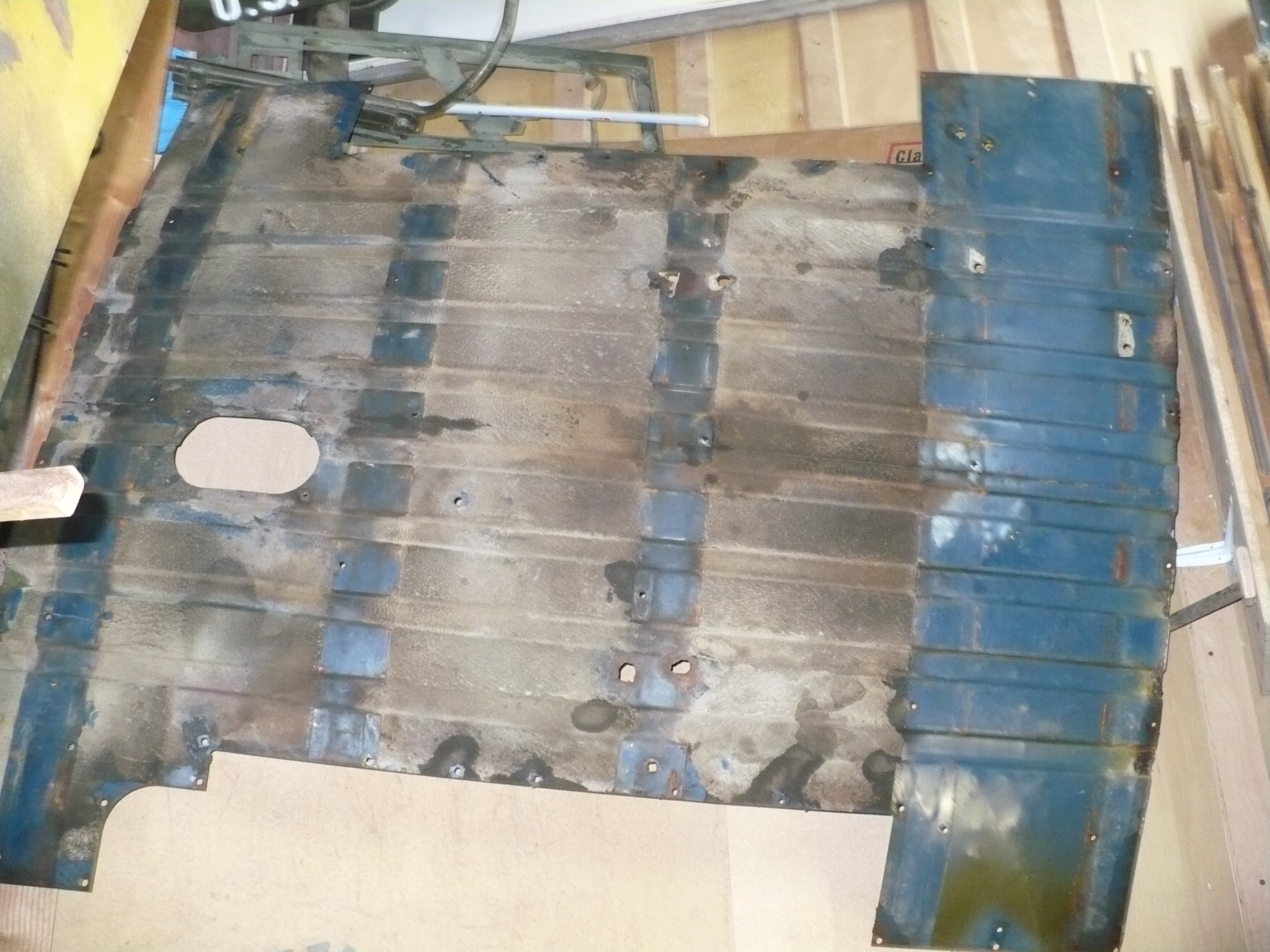

Bed Floor removed
|
|
|
|

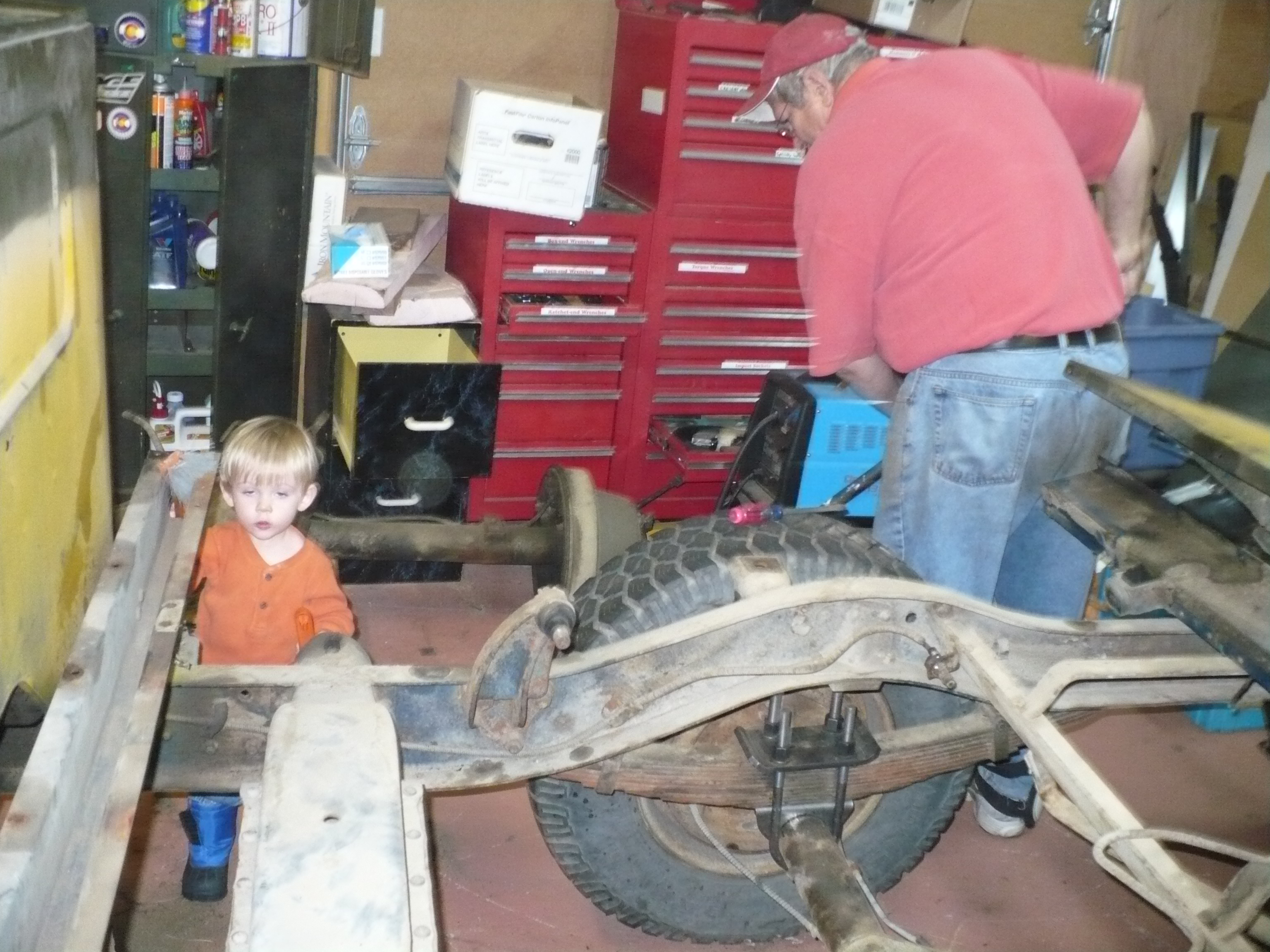

Lucas helping clean out a bed support
|
|
|
|
|
|

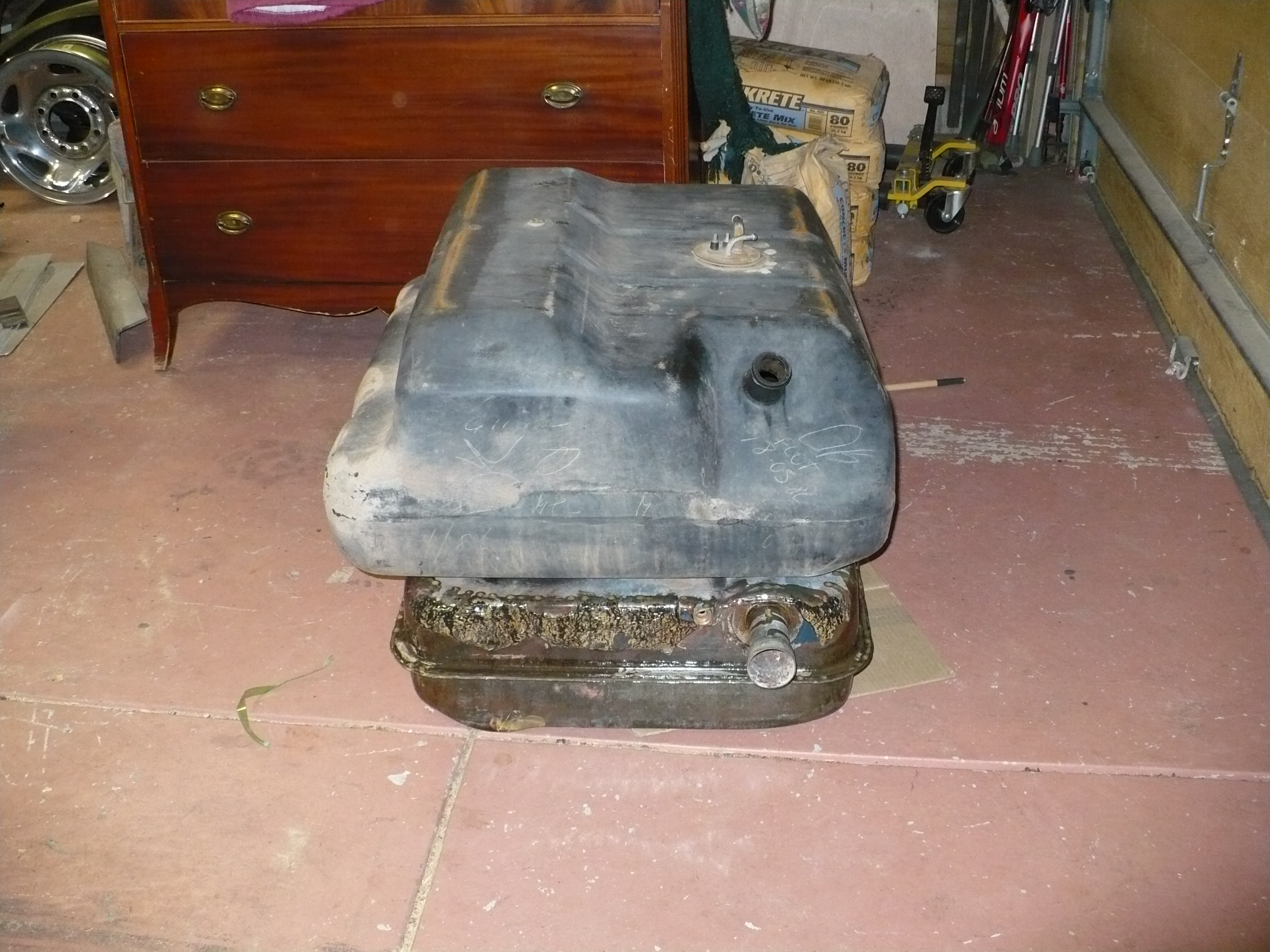

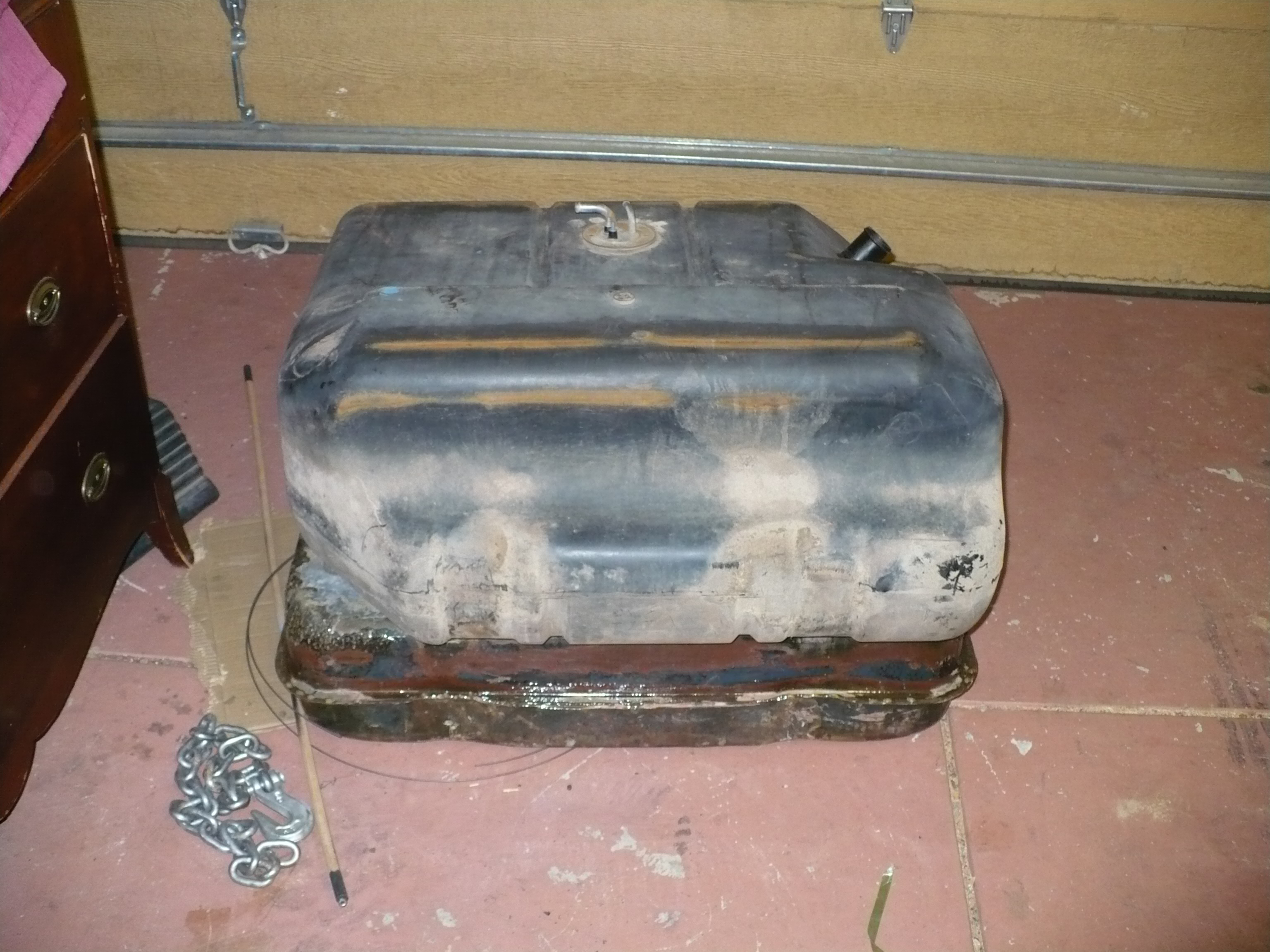

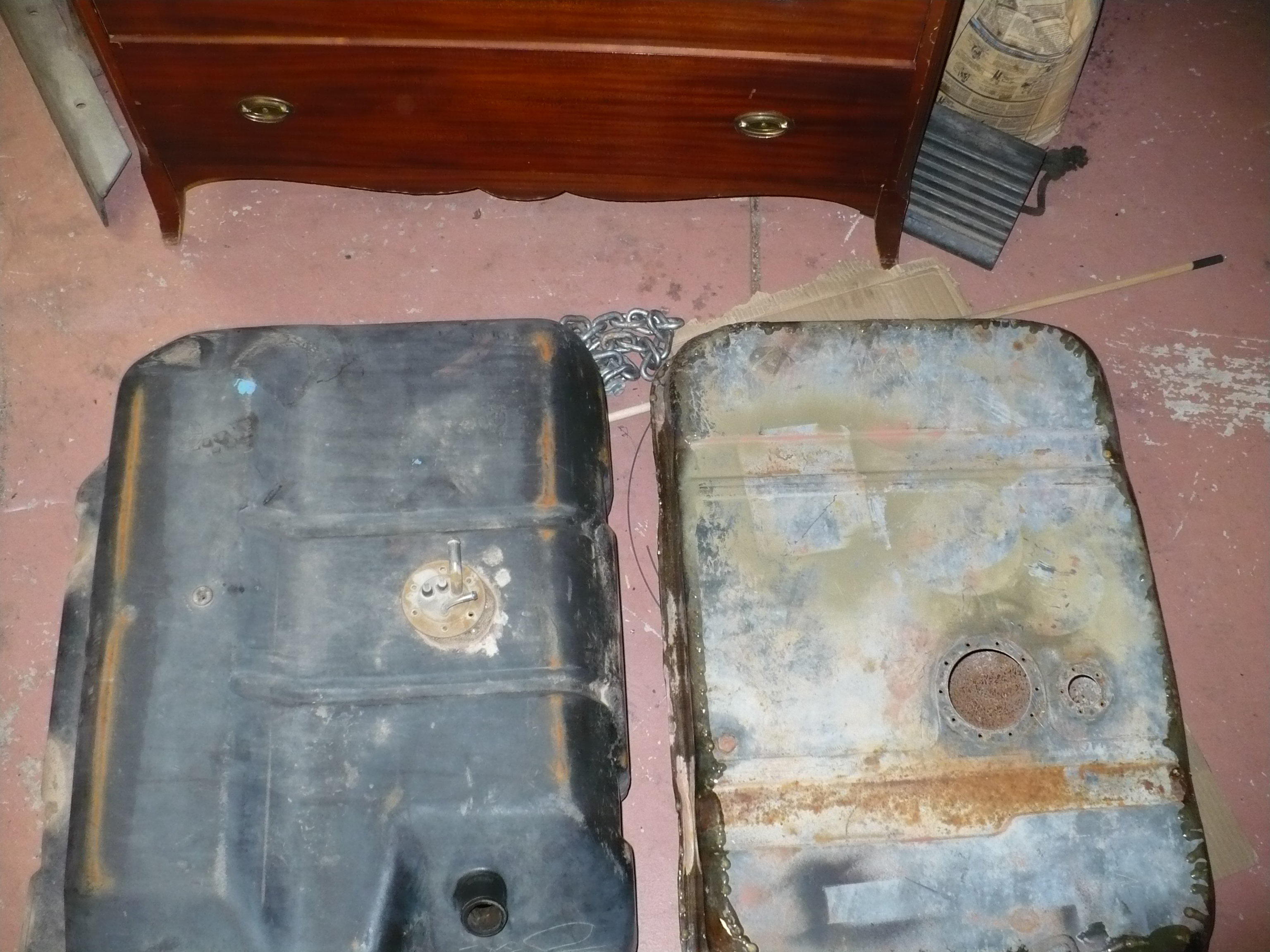

M37 vs Ramcharger gastank
The plastic tank is a 34 gallon ramcharger tank |
|
|
|
M37 vs Ramcharger gastank
|
|
|
|
M37 vs Ramcharger gastank
|
|
|
